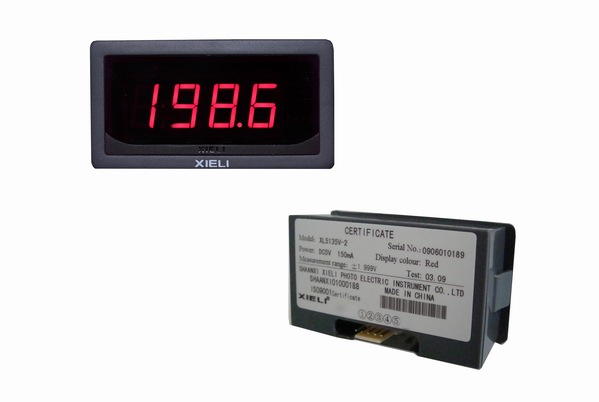

XL5135V series 3½ DC Digital Voltmeter
Power Supply: 9VAC/ 12VDC
Dimension(mm):W79×H42×D25
Mounting hole(mm):76×39.5
Install method: Snap-in
Maximum Count:1999(3 1/2 digit)
Display: 0.56" LED display
Color:Red,Blue,Green displays available
Operating temperature:0℃~60℃
Storage Temperature:-20℃~80℃
Relative humidity:20%~80%
Weight:50~55g
Sample Frequency:400ms
|
Model
|
Digit display
|
Full measurement
|
Resolution
|
Accuracy
|
Input impedance
|
Max.input value
|
Power Supply
|
|
XL5135V-1(AC/DC)
|
3½
|
±199.9mV
|
100μV
|
±0.3 % +1Digit
|
100MΩ
|
±10V
|
AC9V
|
|
XL5135V-2AC/DC)
|
3½
|
±1.999V
|
1mV
|
±0.3 % +1Digit
|
100MΩ
|
±35V
|
AC9V
|
|
XL5135V-3(AC/DC)
|
3½
|
±19.99V
|
10mV
|
±0.3 % +1Digit
|
4.5MΩ
|
±250V
|
AC9V
|
|
XL5135V-4(AC/DC)
|
3½
|
±199.9V
|
100mV
|
±0.3 % +1Digit
|
10MΩ
|
±400V
|
AC9V
|
|
XL5135V-5(AC/DC)
|
3½
|
±300V
|
1V
|
±0.5 % +1Digit
|
10MΩ
|
±500V
|
AC9V
|
|
