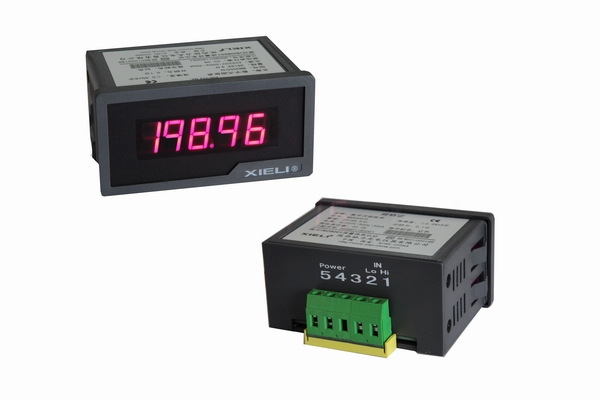

Introduction:MB4300 4½ AC Digital Voltmeter
Power Supply:AC220V±10%
Tapping size(mm): 90×45
Dimension(mm): W96×H48×D77
Install method: Inlay
Maximum Count:19999(4 1/2 digit)
Display:Ultra-bright LED display
Color:Red,Blue,Green displays available
Character Height:15mm
Operating temperature:0℃~60℃
Storage Temperature:-20℃~80℃
Relative humidity:20%~80%
Weight:300~310g
Sample Frequency:400ms
|
Model
|
Digit display
|
Full measurement
|
Resolution
|
Accuracy
|
Input impedance
|
Max.input value
|
Power Supply
|
|
MB4301
|
4½
|
AC199.99mV
|
0.01mV
|
±0.5 % +30Digit
|
10MΩ
|
AC5V
|
AC 220V
|
|
MB4302
|
4½
|
AC1.9999V
|
0.1mV
|
±0.5 % +30Digit
|
1MΩ
|
AC35V
|
AC 220V
|
|
MB4303
|
4½
|
AC19.999V
|
1mV
|
±0.5 % +30Digit
|
10MΩ
|
AC250V
|
AC 220V
|
|
MB4304
|
4½
|
AC199.99V
|
10mV
|
±0.5 % +30Digit
|
10MΩ
|
AC500V
|
AC 220V
|
|
MB4305
|
4½
|
AC500.0V
|
0.1V
|
±0.5 % +5Digit
|
10MΩ
|
AC700V
|
AC 220V
|
|
