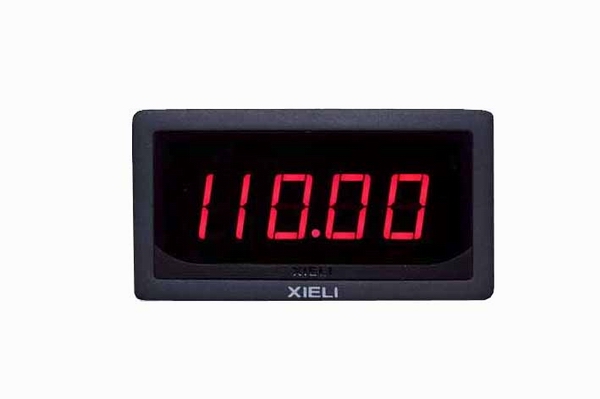

XL5155P series Digital Frequency Meter
Power Supply:DC5V
Dimension(mm):W79×H42×D25
Mounting hole(mm):76×39.5
Install method: Inlay
Maximum Count:99999(5 digit)
Display:Ultra-bright LED display
Color:Red,Blue,Green displays available
Character Height:15mm
Operating temperature:0℃~60℃
Storage Temperature:-20℃~80℃
Relative humidity:20%~80%
Sample Frequency:400ms
|
Model
|
Digit display
|
Full measurement
|
Accuracy
|
Waveform
|
Power Supply
|
|
XL5155P-2
|
4
|
0.2Hz-99.99Hz
|
±0.2%+3Digit
|
Square wave 3-10V,Sine wave 3-250V
|
DC5V
|
|
XL5155P-3
|
4
|
100.1Hz-950.0Hz
|
±0.2%+3Digit
|
Square wave 3-10V,Sine wave 3-250V
|
DC5V
|
|
XL5155P-4
|
5
|
1Hz-99.999KHz
|
±0.2%+3Digit
|
Square wave 3-10V,Sine wave 3-250V
|
DC5V
|
|
