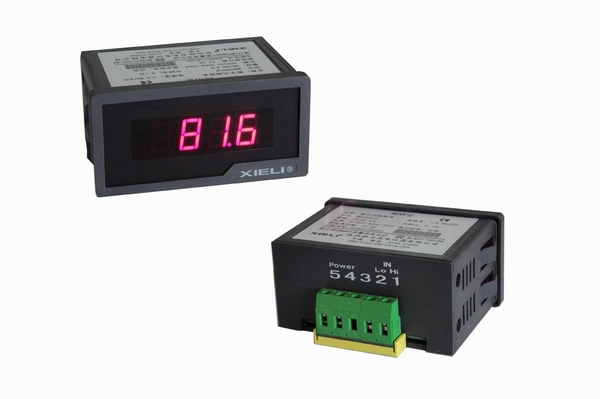

Introduction:TMS Digital Voltmeter
Power Supply:AC220V±10%
Tapping size(mm): 90×45
Dimension(mm): W96×H48×D77
Install method: Inlay
Maximum Count:1999(3 1/2 digit)
Display:Ultra-bright LED display
Color:Red,Blue,Green displays available
Character Height:15mm
Operating temperature:0℃~60℃
Storage Temperature:-20℃~80℃
Relative humidity:20%~80%
Weight:300~310g
Sample Frequency:400ms
|
Model
|
Digit display
|
Full measurement
|
Resolution
|
Accuracy
|
Max.input voltage
|
Power Supply
|
|
MB3302TMS
|
3 ½
|
AC1.999V
|
1mV
|
According to the
frequency range
|
AC10V
|
AC220V
|
|
MB3303TMS
|
3 ½
|
AC19.99V
|
10mV
|
AC50V
|
AC220V
|
|
MB3304TMS
|
3 ½
|
AC199.9V
|
100mV
|
AC500V
|
AC220V
|
|
MB3305TMS
|
3 ½
|
AC500V
|
1V
|
AC700V
|
AC220V
|
|
MB4302TMS
|
4 ½
|
AC1.9999V
|
0.1mV
|
AC10V
|
AC220V
|
|
MB4303TMS
|
4 ½
|
AC19.999V
|
1mV
|
AC50V
|
AC220V
|
|
MB4304TMS
|
4 ½
|
AC199.99V
|
10mV
|
AC500V
|
AC220V
|
|
MB4305TMS
|
4 ½
|
AC500.0V
|
100mV
|
AC700V
|
AC220v
|
|
